Model | ZL32-04 | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0-3.4W / 12V: 0-5.8W / 24V: 0-5.8W | ||||||||

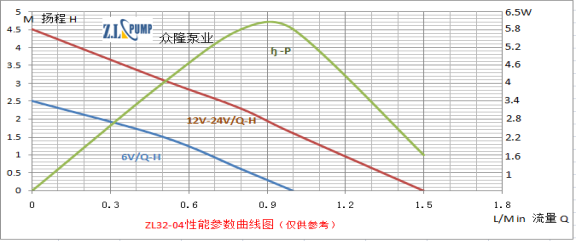

Static Water Head | 0-4.5 M | ||||||||
Static Flow Rate | 0-1.5 L/min | ||||||||
Lifespan | Continuous operation ≤24hrs，under normal working surrounding >20000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable in water (Submersible)，Run-dry protection | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <35dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature ≤70℃ | ||||||||
Application | Solar water circulation system, air cleaner, moistening machines, etc. | ||||||||
Size | IP Grade | Outlet | Inlet | Remarks | |||||
Length（mm） | Width（mm） | Height（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Outlet with non-slip insert | ||
41 | 34 | 60 | IP68 | φ13.8 | φ9 | φ8.5 | φ2.5 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
