| Model | ZL50-15 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：20-30W / 12V：20-60W / 24V：50-120W | ||||||||
| Static Water Head | 5-18M | ||||||||
| Static flow rate | 7-12Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞15000hour | ||||||||
| Working Environment | Applicable liquid pH: weak acid, neutral, weak base. Non diving use | ||||||||
| Max Noise | Normal working condition, the pump is 1 meter away from the tester<50dB | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤90℃ | ||||||||
| Application | High-rise water supply 、Garden watering, irrigation, etc | ||||||||

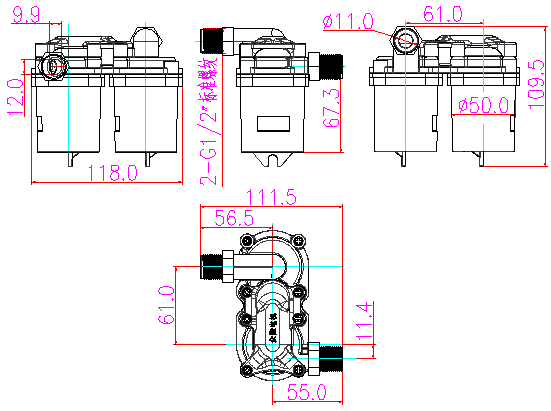

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (inch) | Ellipse (mm) | Inlet and outlet standard thread | ||
| 118 | 112 | 110 | IP67 | G1/2″ Standard threaded pipe | φ11 | G1/2″ Standard threaded pipe | Big path12、Trail9.6 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
